Binary is the number system used by digital computers to represent and process information. It uses only two digits, 0 and 1, to store data, perform calculations, and control electronic operations. Each binary digit is called a bit, and the number of bits available determines how many different patterns a digital system can represent. When these patterns are used to store numerical values, the number of bits also influences the minimum and maximum representable values.
Increasing the number of binary digits expands the range of representable values because every additional bit doubles the total number of possible binary patterns. For example, a 4-bit system can represent 16 distinct patterns, whereas an 8-bit system can represent 256. However, the exact numerical range depends on whether the bits represent unsigned integers, signed integers, or another type of data. In this article, we will learn how increasing the number of binary digits affects numerical range, precision, and practical computing applications.
1. Understanding Binary Digits and Bits
A binary digit, commonly called a bit, is the smallest basic unit of digital information. It can have one of two possible values: 0 or 1. In digital hardware, these values correspond to distinguishable electronic states that can be used to represent information.
Unlike the decimal number system, which uses ten digits from 0 to 9, the binary number system uses base 2. Each position in a binary number represents a power of 2.
For example, consider the binary number 1011. Its decimal value can be calculated by multiplying each digit by the power of 2 associated with its position.
Formula (Text Block):
Binary value = Sum of (Binary digit × Corresponding power of 2)
For the binary number 1011:
Rightmost digit: 1 × 2⁰ = 1
Second digit: 1 × 2¹ = 2
Third digit: 0 × 2² = 0
Leftmost digit: 1 × 2³ = 8
Adding these values gives 8 + 0 + 2 + 1 = 11.
Therefore, the binary number 1011 represents the decimal number 11.
Every additional bit introduces another binary position with a higher power of 2. This allows the system to represent more combinations and, when those combinations are interpreted as numbers, a larger collection of possible values.

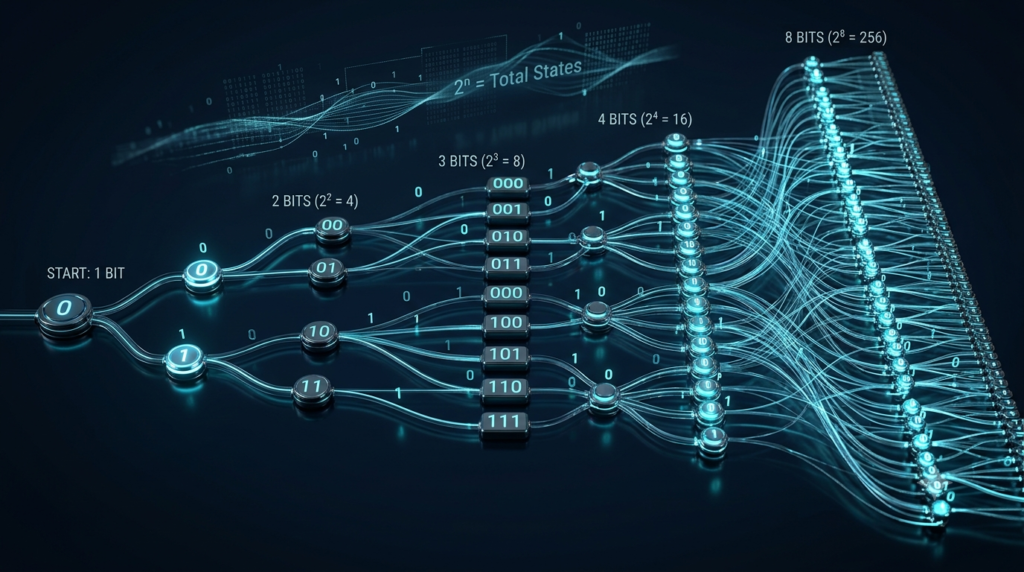

2. How Many Values Can Binary Digits Represent?
The total number of unique binary patterns depends on the number of bits available. Each bit has two possible states, so the number of possible patterns doubles whenever another bit is added.
Formula (Text Block):
Total number of binary patterns = 2ⁿ
Here:
n = number of bits
2 = number of possible states for each bit
For example, a system containing 3 bits can produce eight different patterns:
000, 001, 010, 011, 100, 101, 110, 111
Therefore, 3 bits can represent 8 distinct patterns.
When the system increases from 3 bits to 4 bits, the total number of patterns increases from 8 to 16. The new bit can be either 0 or 1 for every existing pattern, doubling the number of combinations.
Similarly, a 5-bit system provides 32 patterns, and a 6-bit system provides 64 patterns.
It is important to distinguish between the number of patterns and the numerical range. Binary patterns can represent integers, letters, colours, instructions, and other types of information. Their meaning depends on the encoding method being used.
3. Effect of Increasing Bits on Unsigned Integers
An unsigned integer is a whole number that represents zero and positive values but does not directly represent negative values. All available bit patterns are used to represent non-negative integers.
For an unsigned binary number containing n bits, the minimum value is zero, while the maximum value is one less than the total number of possible patterns.
Formula (Text Block):
Minimum unsigned value = 0
Maximum unsigned value = 2ⁿ − 1
For example, a 4-bit unsigned number has the binary range from 0000 to 1111.
The smallest pattern, 0000, represents 0. The largest pattern, 1111, represents 15 because its digit values add up to 8 + 4 + 2 + 1.
Thus, a 4-bit unsigned integer can represent every whole number from 0 to 15, giving 16 distinct values.
When the number of bits increases to 5, the maximum value becomes 31. The range expands from 0–15 to 0–31.
Comparison of Unsigned Integer Ranges
| Number of bits | Total patterns | Minimum value | Maximum value |
|---|---|---|---|
| 1 bit | 2 | 0 | 1 |
| 2 bits | 4 | 0 | 3 |
| 3 bits | 8 | 0 | 7 |
| 4 bits | 16 | 0 | 15 |
| 5 bits | 32 | 0 | 31 |
| 8 bits | 256 | 0 | 255 |
| 16 bits | 65,536 | 0 | 65,535 |
| 32 bits | 4,294,967,296 | 0 | 4,294,967,295 |
The table shows that increasing the number of bits substantially increases the maximum representable value. For example, a 16-bit unsigned integer can represent values much larger than an 8-bit unsigned integer.
4. Why Does Each Additional Bit Double the Number of Values?
Every binary position represents a power of 2. Adding another bit creates a new position with a value twice that of the previous highest position.
Consider the maximum unsigned values for different bit widths:
2 bits: 11 in binary = 3 in decimal
3 bits: 111 in binary = 7 in decimal
4 bits: 1111 in binary = 15 in decimal
5 bits: 11111 in binary = 31 in decimal
Each additional bit doubles the total number of available patterns, although the maximum value itself does not simply double. Instead, the maximum value increases according to the number of bits used.
For example, a 4-bit unsigned integer can represent 16 values, while a 5-bit unsigned integer can represent 32. The number of patterns doubles, and the maximum value increases from 15 to 31.
The effect becomes even more significant at larger bit widths.
A 10-bit unsigned integer can represent 1,024 distinct values, ranging from 0 to 1,023. A 20-bit unsigned integer can represent 1,048,576 distinct values, ranging from 0 to 1,048,575.
Increasing the bit width by 10 multiplies the total number of available patterns by 1,024. This exponential growth is one of the most important characteristics of binary representation.
Formula (Text Block):
Number of patterns after adding k bits = 2ⁿ⁺ᵏ
Multiplication factor = 2ᵏ
Here, n represents the original number of bits and k represents the number of additional bits.
5. Effect of Increasing Bits on Signed Integers
Computers must also represent negative numbers, such as temperatures below zero, financial losses, and negative mathematical results. Signed integer formats allow binary patterns to represent both negative and non-negative values.
A widely used signed integer representation is called two’s complement. In this format, one bit width determines the range of both negative and positive integers.
For an n-bit two’s complement integer, the range is calculated as follows.
Formula (Text Block):
Minimum signed value = −2ⁿ⁻¹
Maximum signed value = 2ⁿ⁻¹ − 1
The exponents in these formulas are n − 1.
For example, an 8-bit signed integer can represent values from −128 to 127. It provides 256 distinct integer values.
A 16-bit signed integer can represent values from −32,768 to 32,767, providing 65,536 distinct values.
Comparison of Signed Integer Ranges
| Number of bits | Minimum value | Maximum value |
|---|---|---|
| 4 bits | −8 | 7 |
| 8 bits | −128 | 127 |
| 16 bits | −32,768 | 32,767 |
| 32 bits | −2,147,483,648 | 2,147,483,647 |
As the number of bits increases, the signed integer range expands in both negative and positive directions. However, the negative side includes one more value than the non-negative side.
This happens because zero is included among the non-negative values, and the complete representation must contain exactly 2ⁿ distinct patterns.
6. Does Increasing the Number of Bits Improve Precision?
Increasing the number of bits provides more available binary patterns, but its effect on precision depends on how those bits are used.
For integers, increasing the bit width expands the range of whole numbers that can be represented. Every integer within the supported range can be stored exactly.
For example, an 8-bit unsigned integer can represent every whole number from 0 to 255. It cannot directly represent 256 in the same format. A 16-bit unsigned integer can represent every whole number from 0 to 65,535.
Fractional numbers require a different explanation. Computers commonly use floating-point formats to represent values such as 3.14, 0.00025, and 6,500,000.
A floating-point number generally divides its available bits among three components:
Sign bit: Indicates whether the value is positive or negative.
Exponent: Determines the scale or magnitude of the value.
Significand: Stores the significant binary digits of the number.
Adding bits to a floating-point format can increase its numerical range, its precision, or both, depending on how the additional bits are allocated.
A larger exponent field can support much larger and smaller magnitudes. A larger significand can allow more significant binary digits to be stored.
Therefore, increasing the number of bits does not always produce the same improvement in precision. The effect depends on the representation format.
7. Understanding the Difference Between Range and Precision
Range and precision are related but different concepts in digital representation.
Range refers to the smallest and largest values that a system can represent.
Precision refers to the level of numerical detail that a representation can distinguish or store.
Consider a digital thermometer that measures temperatures from 0°C to 255°C in whole-degree increments. It can represent a broad range of temperatures, but it cannot directly record a value such as 25.5°C.
Another thermometer might measure from −40°C to 125°C in increments of 0.1°C. Its range is narrower, but it can represent temperature differences in finer increments.
This example demonstrates that a wider range does not necessarily mean greater precision.
For unsigned integers, increasing the number of bits expands the maximum value while preserving a step size of one between consecutive integers.
For fixed-point numbers, adding fractional bits can allow smaller increments between representable values. In floating-point systems, the distance between consecutive representable numbers varies with the magnitude of the values.
Understanding this distinction is important when choosing numerical formats for calculations, measurements, and data processing.
8. Real-World Applications of Increasing Binary Digits
Increasing the number of bits is useful in many areas of computer science and digital technology.
8.1 Computer Processors
Processors use different integer widths to perform calculations. Common widths include 8-bit, 16-bit, 32-bit, and 64-bit values.
A larger integer width allows a numerical value to represent a larger range of integers directly. It can also influence arithmetic operations, memory addressing, and software design.
However, a wider bit width does not automatically make every operation faster. Performance depends on the processor architecture, instruction set, and type of workload.
8.2 Memory Addressing
Memory addresses identify locations where data and instructions are stored. If an address contains n bits, it can represent 2ⁿ distinct address patterns.
Formula (Text Block):
Number of address patterns = 2ⁿ
For example, a 16-bit address provides 65,536 possible address patterns, while a 32-bit address provides 4,294,967,296.
The actual amount of accessible memory depends on the system architecture, the size of each addressable unit, operating system limitations, and hardware design. Nevertheless, increasing address width can make a much larger address space possible.
8.3 Digital Images
Digital images use binary data to represent brightness and colour. The number of bits allocated to a pixel or colour channel determines how many different intensity values can be represented.
For example, an 8-bit channel provides 256 possible intensity levels, from 0 to 255. A 10-bit channel provides 1,024 levels.
More intensity levels can create smoother colour gradients and help reduce visible banding when the image-processing pipeline and display support the additional detail.
However, the final image quality also depends on factors such as compression, display capabilities, and the original image data.
8.4 Scientific Measurements
Scientific instruments often convert continuous physical measurements into digital values using an analog-to-digital converter, or ADC.
An ideal 8-bit ADC provides 256 possible output codes, while a 12-bit ADC provides 4,096 possible output codes.
For the same input range, the 12-bit converter offers 16 times as many quantization levels as the 8-bit converter. This can allow smaller changes in the input signal to be represented.
Nevertheless, more bits alone do not guarantee greater measurement accuracy. Noise, calibration, electrical characteristics, and the quality of the measurement system also matter.
9. Limitations of Increasing the Number of Bits
Although increasing the number of bits expands representational capacity, it can also introduce practical costs.
First, wider values may require more storage. An 8-bit value occupies one byte, whereas a 32-bit value occupies four bytes when stored in a conventional 32-bit field.
Second, larger data representations can increase memory usage and data-transfer requirements. This may affect storage capacity, bandwidth, and processing efficiency.
Third, programs must use suitable data types to benefit from wider numerical ranges. If a calculation uses a data type that is too small, the result may overflow.
Overflow occurs when a calculation produces a value outside the range supported by the selected representation. For example, the maximum value of an 8-bit unsigned integer is 255. Adding 1 produces the mathematical result 256, which cannot be represented in that same 8-bit unsigned format.
In fixed-width arithmetic, the stored result may wrap around to zero, depending on the operation and programming language.
Choosing the appropriate number of bits therefore requires balancing numerical range, precision, memory usage, and performance.
10. Important Formulas to Remember
The following formulas summarize the relationship between binary digits and representable values.
1. Total number of binary patterns
Formula (Text Block):
N = 2ⁿ
Here, N is the total number of possible patterns and n is the number of bits.
2. Unsigned integer range
Formula (Text Block):
Minimum value = 0
Maximum value = 2ⁿ − 1
This applies to unsigned integers containing n bits.
3. Two’s complement signed integer range
Formula (Text Block):
Minimum value = −2ⁿ⁻¹
Maximum value = 2ⁿ⁻¹ − 1
This applies to conventional n-bit two’s complement signed integers.
4. Effect of adding more bits
Formula (Text Block):
Multiplication factor = 2ᵏ
Here, k is the number of additional bits. Adding 3 bits, for example, multiplies the number of available patterns by 8.
These formulas demonstrate that the number of binary patterns increases exponentially as the number of bits increases.
Conclusion
Increasing the number of binary digits expands the range of representable values because each additional bit doubles the number of available binary patterns. An n-bit system can represent 2ⁿ distinct patterns, but the actual numerical range depends on how those patterns are interpreted.
For unsigned integers, the range extends from 0 to 2ⁿ − 1. For conventional two’s complement signed integers, it extends from −2ⁿ⁻¹ to 2ⁿ⁻¹ − 1. In floating-point and fixed-point representations, additional bits can also affect the range and precision of fractional values.
This principle is fundamental to computer processors, memory addressing, digital imaging, scientific instruments, and numerical calculations. Understanding how bit width affects representable values helps explain why digital systems use different data sizes and why selecting an appropriate representation is essential for accurate and efficient computing.
FAQs
1. What happens when the number of binary digits increases?
Increasing the number of binary digits increases the total number of possible binary patterns. Each bit can have one of two values, 0 or 1. Therefore, every additional bit doubles the number of available combinations. For example, 4 bits can represent 16 different patterns, while 8 bits can represent 256. When these patterns represent integers, the additional bits generally allow a wider numerical range. The exact minimum and maximum values depend on whether the binary number uses an unsigned or signed representation. This principle is fundamental to computer memory, digital processing, and data representation.
2. How many values can be represented using n binary digits?
A binary number containing n bits can represent 2ⁿ distinct binary patterns. This is because every bit has two possible states: 0 and 1. For example, 3 bits provide 2³ = 8 patterns, while 5 bits provide 2⁵ = 32 patterns. Similarly, an 8-bit system can represent 256 different patterns. These patterns may represent numbers, characters, colours, or other information. When representing integers, the available patterns determine the number of possible values. However, the numerical range depends on the encoding method used to interpret those patterns.
3. What is the maximum value of an unsigned binary number?
The maximum value of an unsigned binary number containing n bits is 2ⁿ − 1. An unsigned number represents zero and positive integers without representing negative values. For example, an 8-bit unsigned integer has a maximum value of 255 because 2⁸ − 1 = 255. Its complete range extends from 0 to 255, providing 256 distinct values. Similarly, a 16-bit unsigned integer can represent values up to 65,535. Increasing the number of bits raises the maximum representable value and expands the range of whole numbers that the system can store.
4. Why does adding one bit double the number of possible values?
Each binary digit has two possible states, 0 and 1. When a new bit is added, every existing binary pattern can be extended in two ways: by adding either 0 or 1. Consequently, the total number of patterns doubles. For example, 4 bits provide 16 patterns, while 5 bits provide 32. This relationship follows the formula 2ⁿ, where n represents the number of bits. Adding one bit changes the total from 2ⁿ to 2ⁿ⁺¹, which is twice the original number. This exponential growth allows digital systems to represent increasingly large collections of values.
5. How does increasing the number of bits affect signed integers?
Increasing the number of bits expands the range of signed integers in both negative and positive directions. Signed integers commonly use two’s complement representation, which allows binary patterns to represent negative numbers, zero, and positive numbers. An 8-bit signed integer ranges from −128 to 127, while a 16-bit signed integer ranges from −32,768 to 32,767. The total number of representable values doubles whenever one additional bit is added. However, the negative range contains one more value than the non-negative range because zero is included among the non-negative values.
6. What is the difference between signed and unsigned binary numbers?
Unsigned binary numbers represent zero and positive integers, whereas signed binary numbers can represent negative and non-negative integers. In an n-bit unsigned format, the range extends from 0 to 2ⁿ − 1. In an n-bit two’s complement signed format, the range extends from −2ⁿ⁻¹ to 2ⁿ⁻¹ − 1. For example, an 8-bit unsigned integer ranges from 0 to 255, while an 8-bit signed integer ranges from −128 to 127. Both formats provide 256 distinct patterns, but they interpret those patterns differently. The appropriate format depends on the values required by a particular application.
7. Does increasing the number of binary digits improve precision?
Increasing the number of bits can improve precision, but the result depends on the numerical representation. For integers, additional bits expand the range of whole numbers without changing the spacing between consecutive integers. For fractional values, additional bits may provide finer resolution or a wider numerical range. Floating-point formats divide bits among the sign, exponent, and significand. More exponent bits can expand the range, while more significand bits can improve precision. Therefore, increasing the total bit count does not guarantee the same improvement in every format. The allocation of bits determines how effectively a system represents numerical details.
8. How many values can an 8-bit binary number represent?
An 8-bit binary number can represent 256 distinct patterns because 2⁸ = 256. If the number is unsigned, these patterns represent integers from 0 to 255. If the number uses conventional two’s complement signed representation, the range is −128 to 127. Both formats contain 256 distinct values, but the interpretation differs. Eight-bit values are commonly used in digital systems, including image colour channels, data storage, and communication protocols. The actual meaning of an 8-bit pattern depends on its data type and encoding. Therefore, knowing the bit width alone is not always enough to determine its numerical value.
9. How does increasing the number of bits affect computer memory and storage?
Increasing the number of bits used to store a value generally increases its storage requirements. For example, an 8-bit value occupies one byte, while a 32-bit value occupies four bytes when stored in a conventional 32-bit field. Wider values can represent larger numerical ranges, but they may require more memory and data-transfer capacity. Increasing the width of memory addresses can also allow a system to identify more locations, depending on its architecture. However, larger data types do not automatically improve performance. Programmers must select suitable bit widths to balance numerical capacity, memory usage, and processing requirements.
10. Why is the number of binary digits important in computer science?
The number of binary digits is important because it determines how many patterns a digital system can represent and influences the range and precision of numerical data. Processors use different bit widths for calculations, while memory systems use binary addresses to identify storage locations. Digital images use bits to represent brightness and colour, and scientific instruments use them to convert measurements into digital values. More bits can increase representational capacity, but they may also require additional storage and processing resources. Understanding bit width helps computer scientists choose appropriate data types, prevent numerical overflow, and design systems that handle information accurately and efficiently.
